Patriot Bagger for '96-23 Street Glide | Harley Handlebars

Patriot Bagger handlebar for '96-23 Harley Davidson Street Glide, Electra Glide and Ultra Classic

1/11

Patriot Bagger for '96-23 Street Glide | Harley Handlebars

$1,005.00

Looking for handlebars with a narrower overall width? At 34 inches wide, the Patriot Bagger Series gives Harley bagger and touring riders a more natural hand position, easier reach, and better control than stock handlebars. They're a strong fit for riders dealing with wrist strain, shoulder fatigue, upper back discomfort, or awkward posture on longer rides. Along with improving comfort, they give the bike a sharper, more aggressive bagger profile.

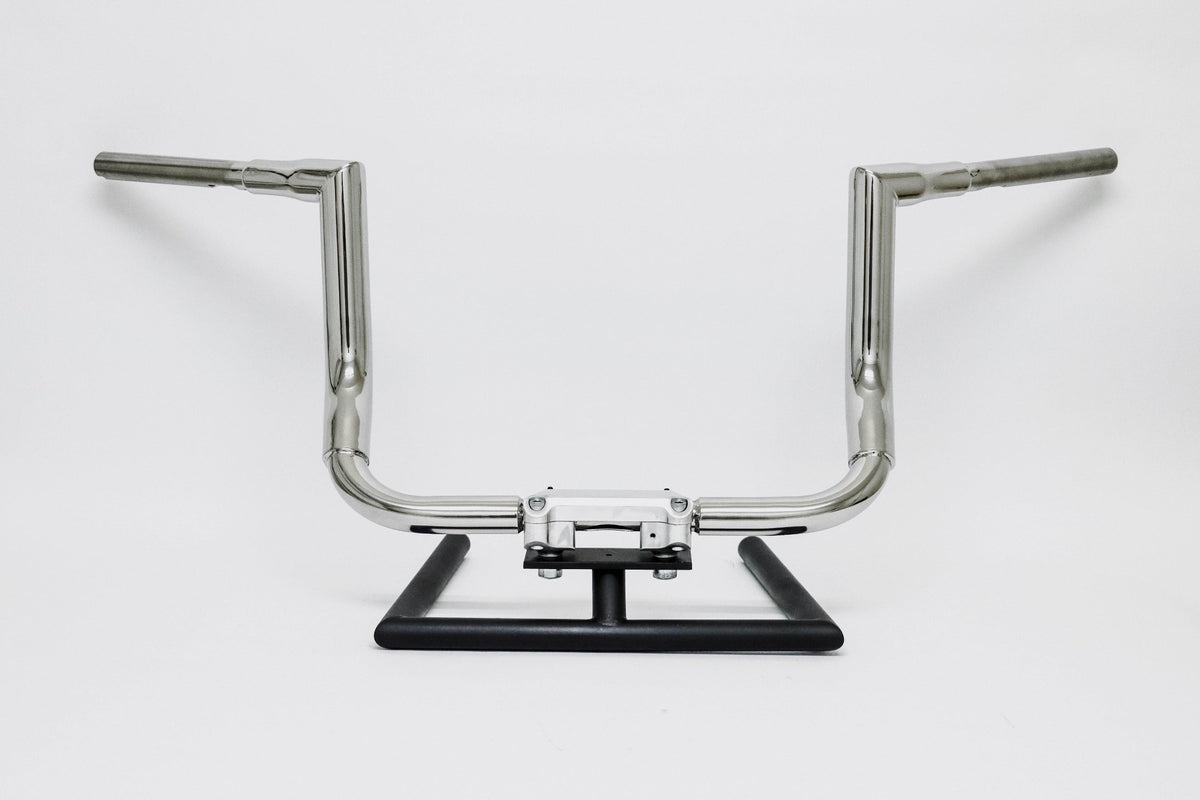

Polish

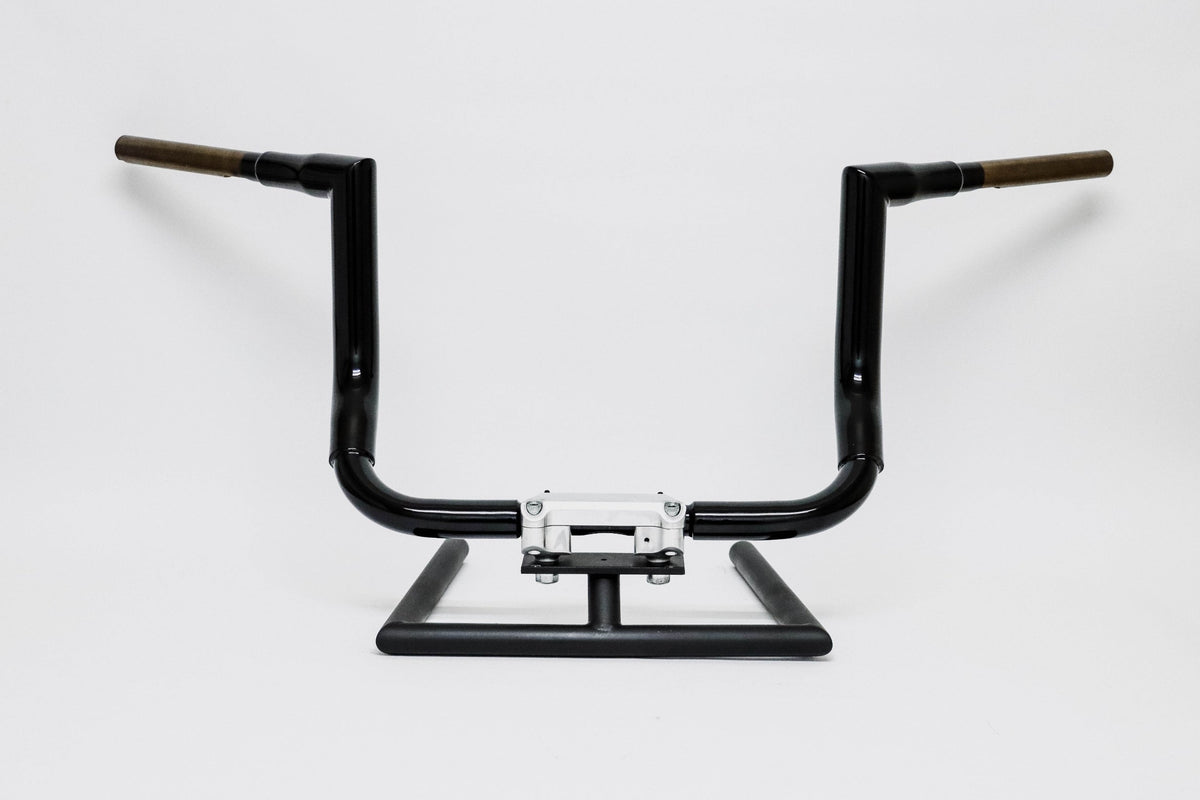

High Gloss Black

Fully Pre-Wired 16-23 with Avon Air Cushion Heated Grips Black

Fully Pre-Wired 16-23 with Avon Air Cushion Heated Grips Chrome

Fully Pre-Wired 16-23 with Heated Grip Splice

Fully Pre-Wired 16-23

Fully Pre-Wired 14-15 with Avon Air Cushion Heated Grips Black

Fully Pre-Wired 14-15 with Avon Air Cushion Heated Grips Chrome

Fully Pre-Wired 14-15 with Heated Grip Splice

Fully Pre-Wired 14-15

SELECTED: — ✓

PRODUCT INFORMATION

Designed for the 1996-2023 Harley Davidson Batwing Fairing Touring Models including street glide, electra glide, ultra classic/limited and trike. Will not fit the 23 CVO or the 2024-2026 Models

Looking for a narrower overall width? At 34" wide, The Patriot Bagger is the handlebar for you. The squared up style of the Patriot gives your motorcycle a custom look to set you apart from the pack. The narrow width is comfortable stance for riders of all styles

Mfg. out of 1.5" diameter 304 ornamental grade stainless steel and CNC mandrel bent

Notched and slotted for internal wiring and TBW. Will also fit non-TBW models

-Our hand polished stainless steel finish gives the appearance of chrome but with the durability of stainless. High Gloss black powder coating is from the same supplier used by Harley Davidson

Specs: 34" Tip-Tip with 6.5" pullback. Available in 10", 12" and 14" rise. 16" by special order only

Handlebars are stepped down in specific areas so no modifications are required to the fairing in order to make the 1.5" diameter tubing fit correctly

Stock handlebars are 8"

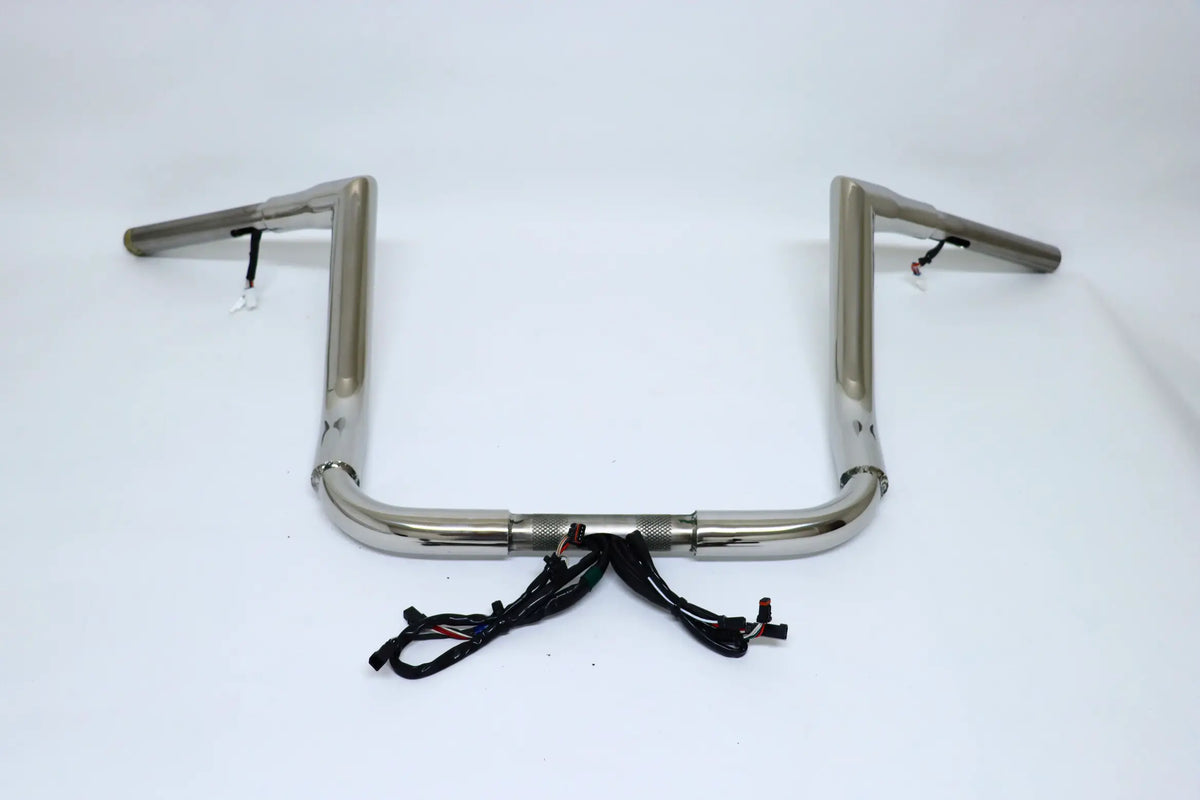

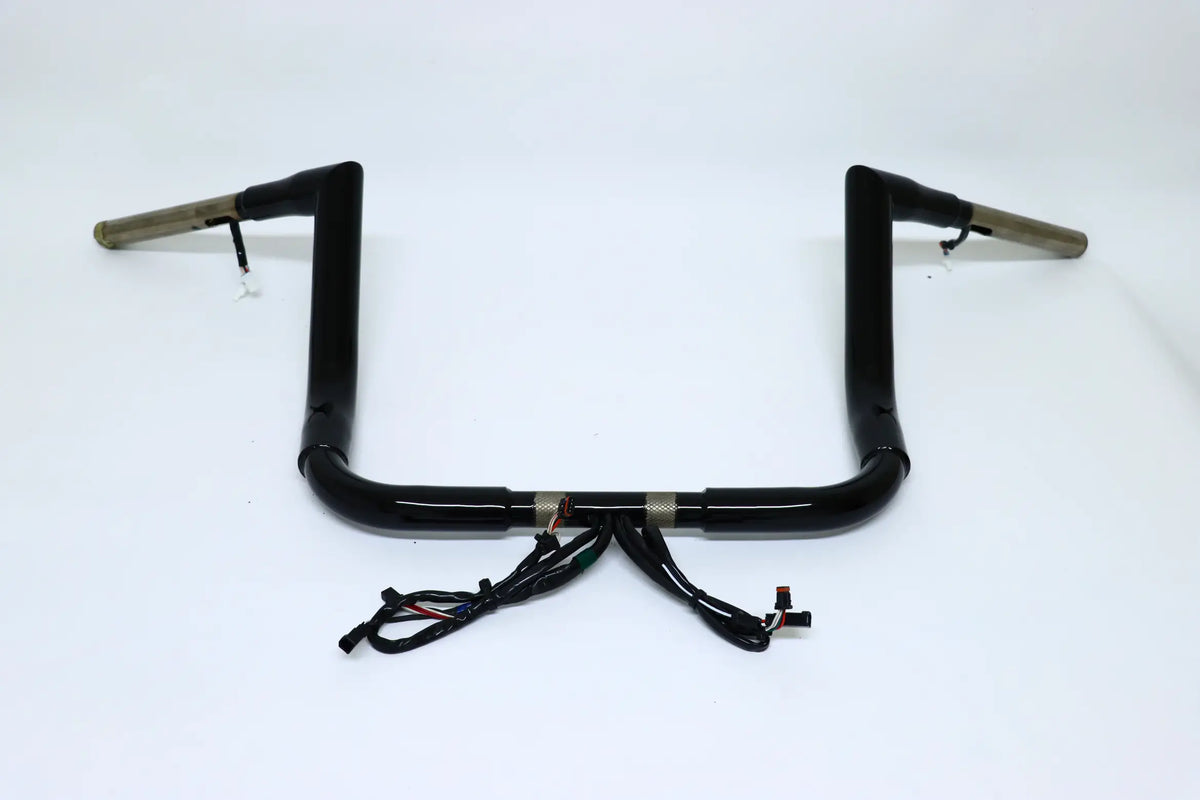

Can be purchased Fully Pre-Wired

2014-2023 models: 12" tall bars can be installed without replacing your brake or clutch hoses. All you need is our wire extensions. On ABS models, 14" tall bars can be installed with some minor rerouting.

2021-2023 models: 14" bars will require the clutch cable to be extended or replaced. We offer the +4" overstock clutch extensions. Part# 109812

2008-2013 Street Glide Models can install 10" handlebars with stock brake, clutch and electrical. The clutch cable requires some minor rerouting

NARROW, CONTROLLED FEEL:

Designed for Harley-Davidson 2023 CVO and 2024-2026 Street Glide models.

This handlebar comes up and back toward the rider 4 extra inches compared to stock. The wrist angle is ergonomically redesigned to place your wrist in a more neutral position and help prevent rider fatigue.

Manufactured from 1.25-inch T304 ornamental-grade stainless steel and CNC mandrel bent.

Our hand-polished stainless steel finish gives the appearance of chrome with the durability of stainless steel. Our high-gloss black powder coating is produced by the same supplier used by Harley-Davidson.

Notched and slotted for internal wiring and throttle by wire. Will also fit non-throttle-by-wire models and accepts heated grips.

Specs: 33 inches wide tip to tip, 33-degree wrist angle, and +4 inches back to the rider.

Can be purchased with our 2024-2026 Pre-Wired Bundle.

2023 CVO and 2024-2026 model years: you will need to replace the upper clutch cable, but the brake and electrical will be fine at stock length.

INSTALLATION OPTIONS

CHOOSE THE SETUP THAT MATCHES YOUR BUILD AND INSTALLATION PREFERENCES.

FULLY PREWIRED

Take the internal wiring out of your handlebar installation. KST extends the electrical harness to accommodate handlebars up to 16 inches tall and routes it through the bars before shipment. Once your handlebars arrive, connect the switch controls, plug the harness into the motorcycle, and complete the remaining installation.

Best for:

Riders who want to avoid extending and routing the electrical wiring through the handlebars.

'''

PRODUCT VIDEOS

Follow the full install process for 2024-2026 Street Glide models and see how KST handlebars are fitted for a clean, proper installation.

Get a fitment overview for 2024-2026 Road Glide and Street Glide models, including the latest bike changes and what they mean for handlebar setup.
