Patriot Bagger for '24-'26 Street Glide | Harley Handlebars

Patriot Bagger handlebar for '96-23 Harley Davidson Street Glide, Electra Glide and Ultra Classic

1/6

Patriot Bagger for '24-'26 Street Glide | Harley Handlebars

$705.00

Looking for handlebars with a narrower overall width? At 34 inches wide, the Patriot Bagger Series gives Harley bagger and touring riders a more natural hand position, easier reach, and better control than stock handlebars. They're a strong fit for riders dealing with wrist strain, shoulder fatigue, upper back discomfort, or awkward posture on longer rides. Along with improving comfort, they give the bike a sharper, more aggressive bagger profile.

High Gloss Black

Polished

Upper Clutch Cable and Fully Pre-Wired

Upper Clutch Cable

Fully Pre-Wired

None

SELECTED: — ✓

PRODUCT INFORMATION

Designed for the all new 2023CVO and 2024 through 2026 Street Glide

Looking for a narrower overall width? At 34" wide, The Patriot Bagger is the handlebar for you. The squared up style of the Patriot gives your motorcycle a custom look to set you apart from the pack. The narrow width is comfortable stance for riders of all styles

Mfg. out of 1.5" diameter 304 ornamental grade stainless steel and CNC mandrel bent

Notched and slotted for internal wiring.

-High Gloss or polished stainless steel. High Gloss black powder coating is from the same supplier used by Harley Davidson

Specs: 34" Tip-Tip with 6.5" pullback. Available in 10", 12" and 14" rise. 16" by special order only

Handlebars are stepped down in specific areas so no modifications are required to the fairing in order to make the 1.5" diameter tubing fit correctly

Stock handlebars are 8"

Can be purchased pre wired- 2024-2026 Fully Pre-Wired

-10" Can be installed with all stock components but will require you to manipulate the stock top side of the clutch cable. It has a hard casing with formed bends to follow the geometry of the stock handlebar. You will need to bend those by hand in order to allow the fairing to go back together properly. You can include the new top side clutch cable if you do not want to manipulate it by hand.

-12" and 14" can be installed with stock brake line and electrical harnesses. The clutch cable will need to be extended. Please select "yes" for the extended clutch cable

NARROW, CONTROLLED FEEL:

Designed for Harley-Davidson 2023 CVO and 2024-2026 Street Glide models.

This handlebar comes up and back toward the rider 4 extra inches compared to stock. The wrist angle is ergonomically redesigned to place your wrist in a more neutral position and help prevent rider fatigue.

Manufactured from 1.25-inch T304 ornamental-grade stainless steel and CNC mandrel bent.

Our hand-polished stainless steel finish gives the appearance of chrome with the durability of stainless steel. Our high-gloss black powder coating is produced by the same supplier used by Harley-Davidson.

Notched and slotted for internal wiring and throttle by wire. Will also fit non-throttle-by-wire models and accepts heated grips.

Specs: 33 inches wide tip to tip, 33-degree wrist angle, and +4 inches back to the rider.

Can be purchased with our 2024-2026 Pre-Wired Bundle.

2023 CVO and 2024-2026 model years: you will need to replace the upper clutch cable, but the brake and electrical will be fine at stock length.

INSTALLATION OPTIONS

CHOOSE THE SETUP THAT MATCHES YOUR BUILD AND INSTALLATION PREFERENCES.

FULLY PREWIRED

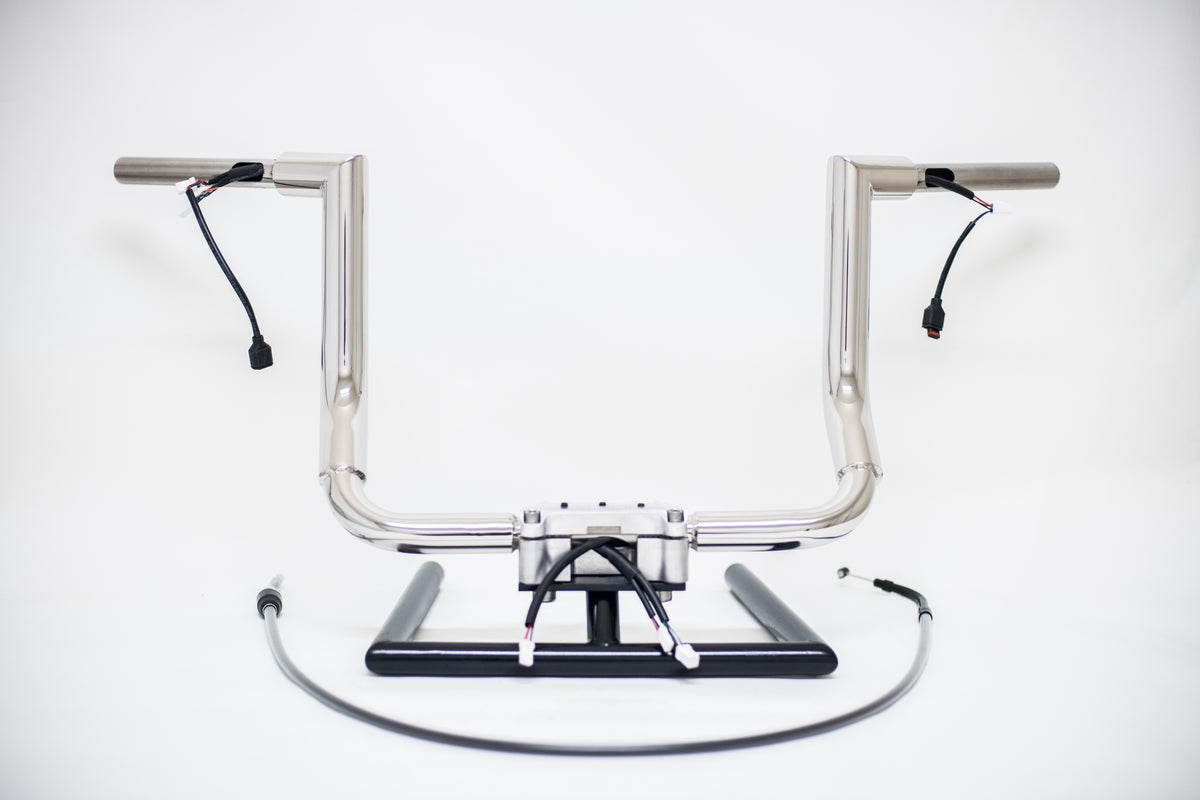

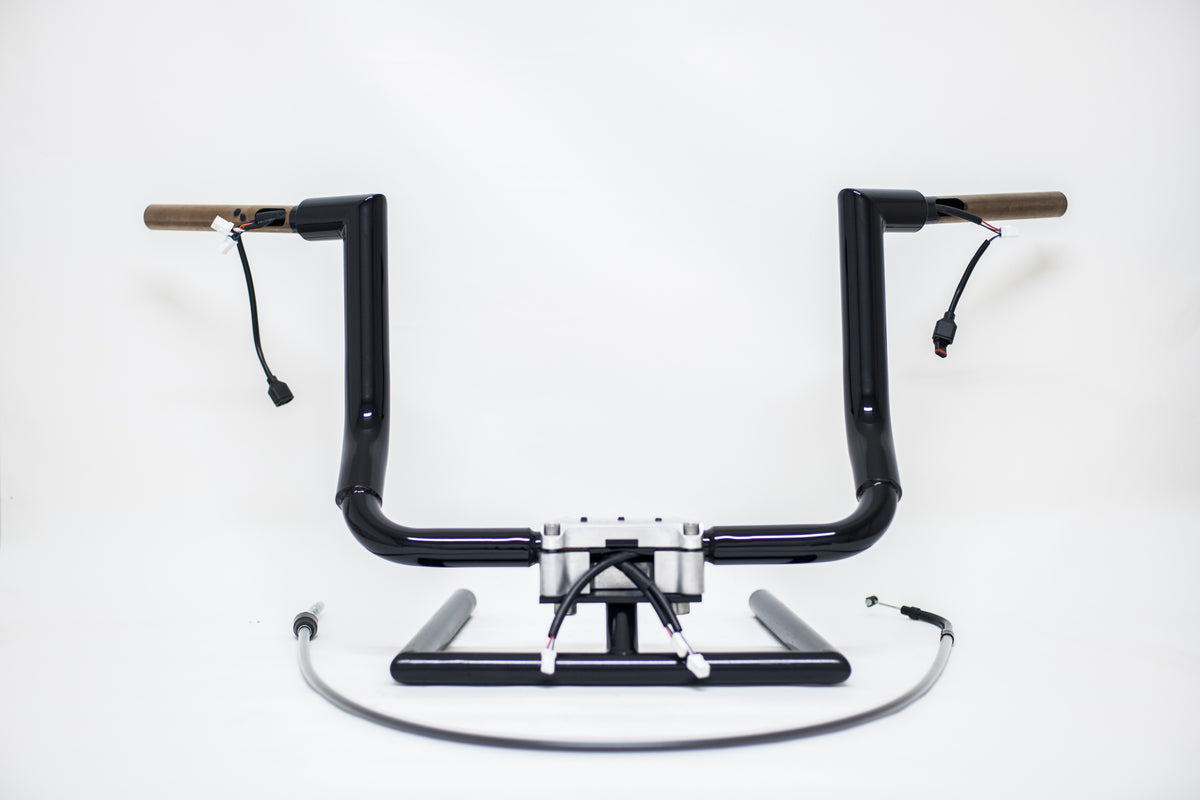

Take the internal wiring out of your handlebar installation. KST extends the electrical harness to accommodate handlebars up to 16 inches tall and routes it through the bars before shipment. Once your handlebars arrive, connect the switch controls, plug the harness into the motorcycle, and complete the remaining installation.

Best for:

Riders who want to avoid extending and routing the electrical wiring through the handlebars.

UPPER CLUTCH CABLE

Replace the factory upper clutch cable with a quick-connect cable designed for your handlebar height. It connects to the existing lower cable section, reducing installation time without requiring you to drain the transmission fluid.

Best for:

Riders installing handlebars that require additional clutch cable length or would otherwise require reshaping the stock upper cable. Requirements vary by handlebar model and rise, so review the product’s fitment notes before selecting this option.

RECOMMENDED: UPPER CLUTCH CABLE AND FULLY PRE-WIRED

Get both installation upgrades together! Your handlebars arrive with the extended electrical harness already routed internally, plus the appropriate quick-connect upper clutch cable for the selected handlebar height. It’s the best value for riders who want a smoother install, fewer headaches, and the fastest path back on the road.

Best for:

Riders who want the most complete installation package with less internal wiring and clutch cable work required. This option is especially recommended when the selected handlebar rise requires an extended clutch cable.

PRODUCT VIDEOS

Follow the full install process for 2024-2026 Street Glide models and see how KST handlebars are fitted for a clean, proper installation.

Get a fitment overview for 2024-2026 Road Glide and Street Glide models, including the latest bike changes and what they mean for handlebar setup.
